DC5-24V Mini 24 Keys RGB RF Wireless LED Controller

Description

This is a LED mini RGB controller combined with a 24-button RF controller. It will be more convenient for you to control you strips since mini Controller is easy to be concealed and RF controller is able to pass through battier and gets a long controlling distance and controlling range since it is not necessary to aim at the main unit when operating.

Features:

About the mini RGB controller:

Voltage: 5V -24V
Working current: 12A / 3 channels
RGB control: 3 output channels, common anode
Working temperature: -20 to +60
Dimension: L1.6*W0.5*H0.2 inch

About the RF remote

20 static colors, 9 dynamic modes, 5-level for speed

ON/STANDBY: to turn on or switch to standby mode

MODE+ / MODE- : switch to dynamic mode from static lighting mode, or switch between dynamic modes

SPEED+ /SPEED- : adjust dynamic mode lighting speed

BRIGHT+ / BRIGHT- : adjust lighting mode brightness

COLOR+ / COLOR- : static color adjustment.Switch to static color from dynamic mode, or between static colors

DEMO : at demo mode, strip will cycle 9 dynamic modes and each mode for 3 times

SINGLE COLOR SELECT:white/red/green/blue/yellow/ching/pink

Caution: RF remote is driven by 3V CR2025 button battery,(NOT INCLUDED) please try to replace with the same type battery.

 Application:

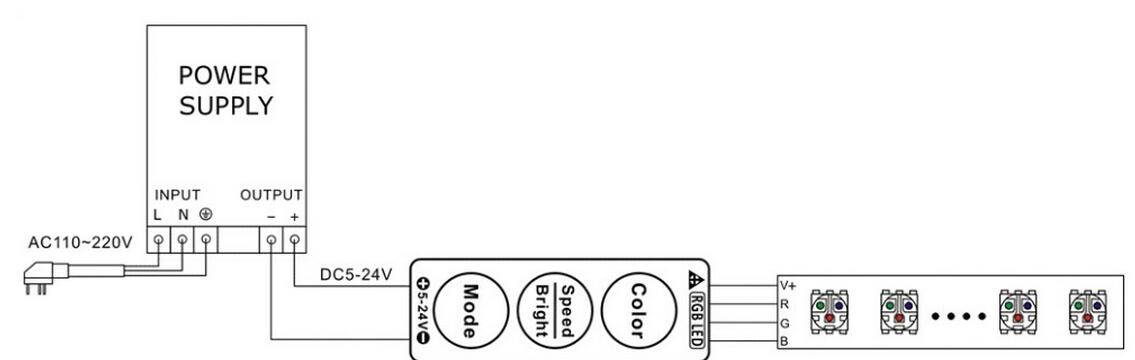

for LED RGB strip light.
