DC5-24V 3x4A 2.4G WIFI LED RGB Controller for iOS iPhone Android Smartphone
- BrandKL
- TypeKL-WiFi-3CH-XV
DC5-24V 3x4A 2.4G WIFI LED RGB Controller for iOS iPhone Android Smartphone
Summarization
2.4G controller is newly introduced wireless high-power LED controller of our company. It equips with
touch remote control, touch remote control adopts high precision capacitance touch control technology,
you can select the color you need by one button. It is convenient and easy. Each controller has a globally
unique address code, in order to prevent confusion caused by controlling repeated address code. Each
controller can be equipped with four remote controls, can achieve multiple controllers synchronization control.
It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,
flexible light strip, wall washer lamp, glass wall light etc. It has many advantages such as convenient to
connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing,
gradual changing, stroboflash and other effects of change.
Technical Parameters
Controller working temperature: -20-60℃
supply voltage: DC5V-24V
output: 3 channels
connection mode: common anode
external dimension: L120ΧW62ΧH27mm
packing size: L185ΧW145ΧH52 mm
net weight: 226g
gross weight: 320g
static power consumption: <1W
output current: <8A (each channel)
output power: 12V:<288W, 24V:<576W
Touch Remote Control
working temperature: -20-60℃
power supply mode: AAA * 3
supply voltage: 1.5V * 3
transmission frequency: 2.4Ghz
standby power consumption: 0.015mW
standby current: 60uA
working current: 200uA
emission current: 10mA
remote distance: about 30m
standby time: 6 months
remote control weight: 94g
1. Match the code of remote control
The controller can be controlled simultaneously by four remote controls, firstly, you need to match the controller with remote control. When matching code, you need to use “match” with “DIP”. In the working process of controller, if the first dial is “on” (Figure 6), press the “Match” key, and then press on/off key on remote control, if the indicator “Signal” flashes, that means the address code is matched successfully, other three groups is the same. Figure 6
2. Button Description
There are 64 touch keys (points) on the panel of touch remote control, the function of each key is as below:
(1) on/off key: you can turn on/off controller output at any state;
(2) pause key, in dynamic mode, you can make the controller stop at the current state;
(3) mode increase key, when the current control mode is pulley mode, if you want to realize the mode of M+ key, you can press this button;
(4) mode reduce key, when the current control mode is pulley mode, if you want to realize the mode of M+ key, you can press this button;
(5) brightness increase key, every time you press this button, the brightness series add 1, altogether 25 levels; (6) brightness reduce key, every time you press this button, the brightness series minus 1, altogether 25 levels; (7) speed increase key, every time you press this button, the speed series add 1, altogether 100 levels;
(8) speed reduce key, every time you press this button, the speed series minus 1, altogether 100 levels;
(9) multicolor pulley touch key, static mode choose key, more than 55 touch points, the button has two function:
1) pulley static color choice key, so when the current control mode is M key mode (color), if must realize pulley static color, you can press this key;
2) pulley color switch key, you can switch static color as the pulley shown.
3. Power supply management
Stop to use the remote more than 15-20s, the remote control will enter the standby state automatically, to extend the battery life. Color ring can not be used at this time, The next time use, first touch key wake up the remote control, then the remote will come back to the normal working state.

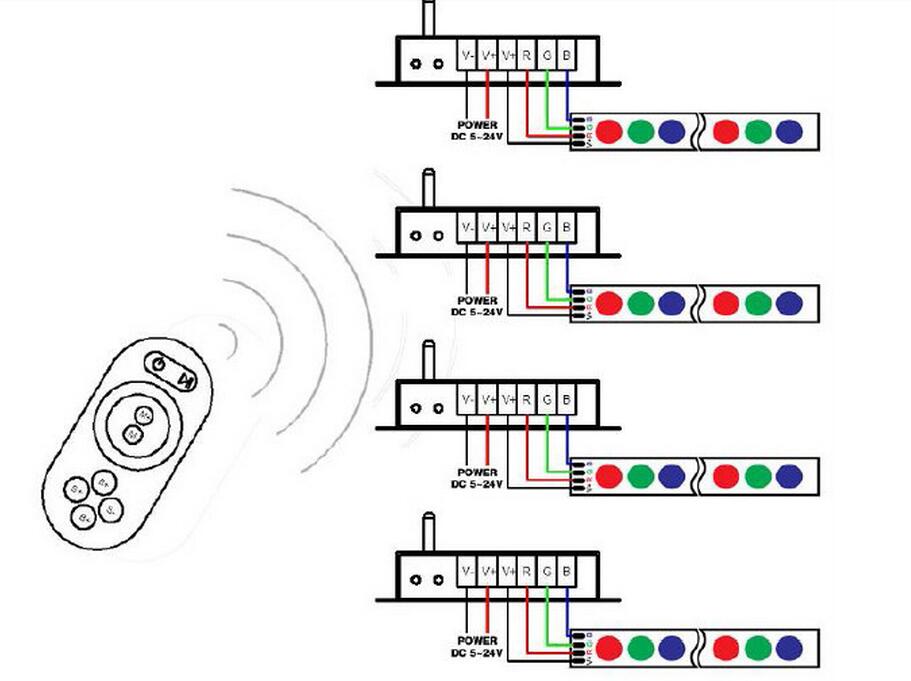

Typical Application The controller can achieve synchronous control, that is one remote control can control multiple controllers at the same time, to achieve synchronous control function. The series 2.4G controllers can be equipped with four remote controls, easy for user to use. As shown in Figure 7, one remote control can control four controllers at the same time (not only can control four controllers simultaneously, as long as the controller is in the emission range of remote control, it can be controlled)
