Wireless Symphony magic LED controller using the SPI bus control signal to contol LED driver IC and control to design a variety of modes,
keys change control LED driver chip,poin large amounts of free combination effect,contol lights,running programs,running parameers,
can be widely used in billboard, exposed luminous characters, point light sources, light bar, the barricade tube, advertising light boxes,
lighting process, home decoration, stage sets

Working temperature: -20.C -60.C
Supply voltage: DC12V
Dimensions: L90X W60x H25mm
Battery for the remote: 12V 23A battery(not included)
Output: two groups SPI signal1. Features:
1) wireless magic color controller one port output most controlled 1024 light point.
2) the built-in 133 common animation effect(customers can request the change).
3) In the 133 kinds of effects can be optional fity kinds of free group fully play.

2. the remote control button description:
ON/OFF button to switch key, in normal playback state long by 2-3 seconds later, controller controller output closed digital tube display-----,In the controller closed long by 2-3 seconds later, he controller starts o work narmally.
MODE button for play pause key, in normal playback state, press a MODE button,the controller will be suspended output, digital tube display STOP.In the controller suspended state, as a MODE button,the controller starts to work normlly.
B- key for effect reduced key,in normal playback state,press the B- key can switch to a program broadcast,digital tube display the current grogram serial number.
B+ key for effect and key,in normally playback state, press the B+ button can switch to he next program broadcast, digital tube display the current program seral number.
S-key forspeed reduction button in normal playback mode, press the S- key program can reduce the playback speed level, digital display SP-(-) for the magnitude of the program playback speed.
S+ keys for speed plus button in normal playback mode,click the S+ keys can increase the program playback speed level, digital tube display SP-(-) for the magnitude of the program playback speed.

Package content:

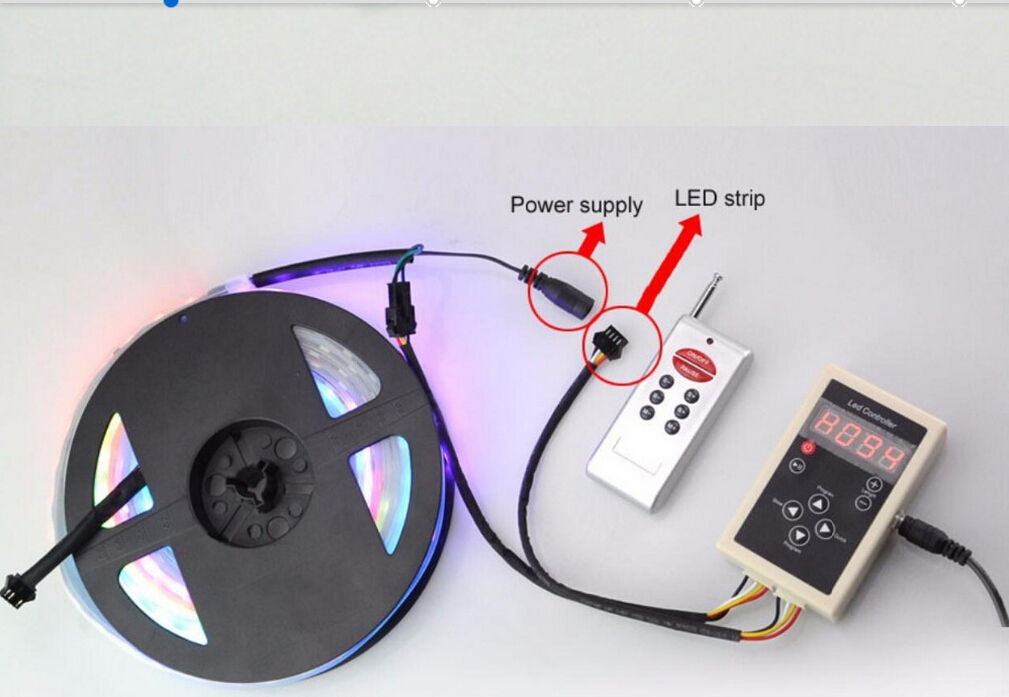

1 Set  RF Wireless Symphony controller
