DC 12V 12A Mini LED RGB Amplifier for 5050 3528 LED Light Strips 3CH Led RGB Color Controller LED Strip Light Dimmer

Product Description:

This RGB amplifier is suitable for all kinds of constant voltage led RGB controller. it can enlarge the led controller signal through the RGB to receive the PWM(pulse width modulation),

and output the signal to the load ,then it can make the same  effect with the controller.when add each additional amplifier, can connect and controlled twice more LED lights.theoretically ,

one controller can connector with thousands of this RGB amplifier, and can make the same effect.

Technical Parameters:

Working temperature:-20-60℃

Input voltage:DC12~24V

Output:3 circuit

Connection mode:Common anode

product’s size:L64*W35*H23mm

Net weight:50g

Gross weight:80g

Static power consumption:<1W

Output current:<4A/ch

Output power:12V: <144W;24V: <288W;

Applications:
Be used for RGB 5050 3528 LED strip, rigid bar, RGB wall washer, RGB underwater lamp, RGB underground light etc.

Safety Information:
1 The input voltage of this controller should be follow the specifications, DC12-24V,never connect to others or AC220V, high voltage would most probably destroy it.
2 All connecting wires can not be incorrectly interconnected, or short circuit could occur.
3 The standard warranty is one year. Our factory won't be responsible for any damage of the controller due to any wrong operation.

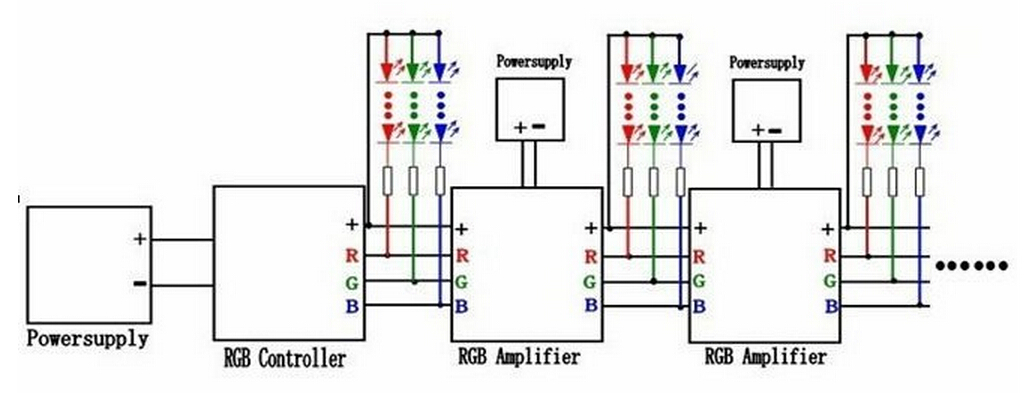

Connect Diagram:
