Product Description

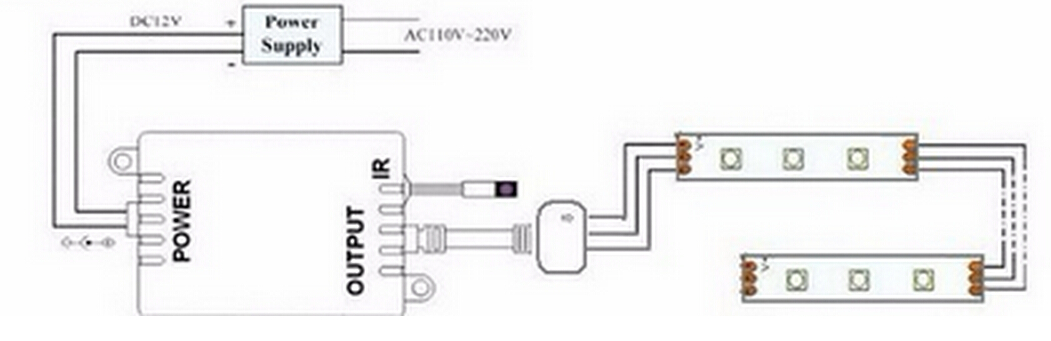

This controller is adopt the most mature infrared remote control technology, mainly used to controlled Color temperature led strips. User can choose different color temperature effect,can adjust the light’s brightness and turn on/off the light,etc.Besides , this controller is with lost power memory function,when powered the controller, it will be in the same color temperature as last time before power off. Most of the function are very clear on the hot key,and its easy to be wiring,very simple to used.



Technical Parameter

Working temperature:-20~60℃

Supply voltage:DC12V~24V

Output:1 Channel

Connection mode:Common anode

Controller size:L83×W79×H33mm

Net weight:25g

Static power consumption:<1W

Output current:6A/CH

Output power:12V:<72W,  24V:<144W
