3chs RGB LED Dimmer

You can adjust the light to appropriate brightness in accordance to your actual need. It is suitable for RGB LED strip and RGB LED linear light.

Technical parameters:

1	Model	KL-RGB-Dimmer
2	Input voltage	DC12V , 24V < optional >
3	Output current	<9A
4	Output power	12V<108W,24V<216W
5	Output	3 channel
6	product dimension	125*60*40mm
7	packing size	140*65*50mm
8	net weight	96g
9	gross weight	112g
10	working temperature	-20-60 °C



Direction for use

1.    Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.    Adopt wireless control,its function as follows

Notes:

1. Supply voltage of this product is DC12V/24V, never connect to others or AC220V.

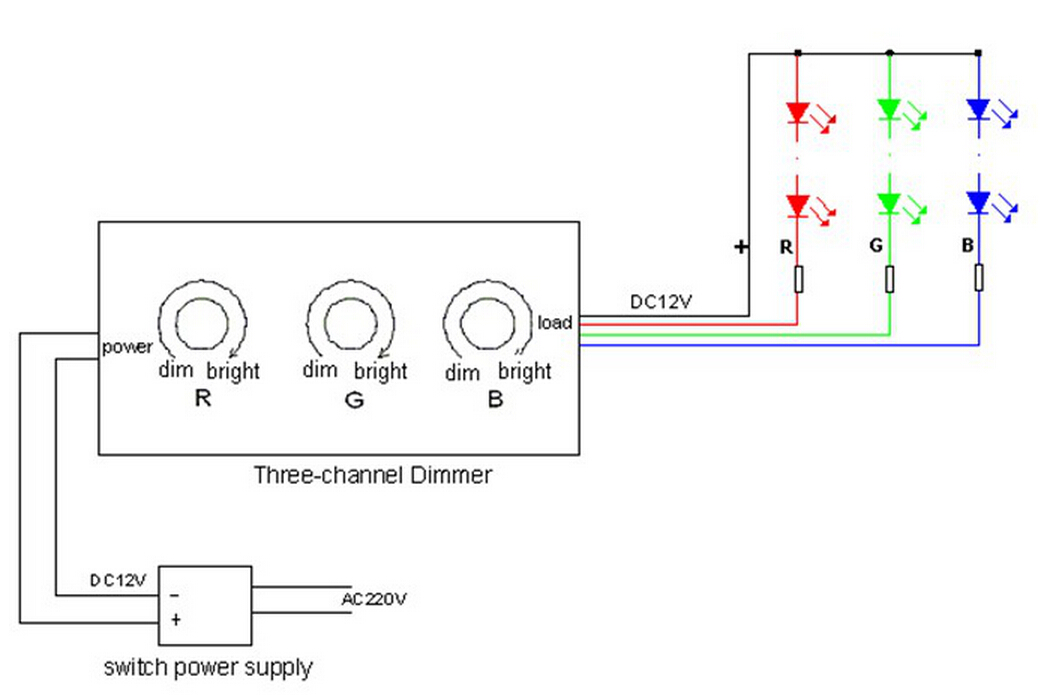

2. Lead wire should be connected correctly according to connecting diagram.

3. Warranty of this product is two years, but exclude the artificial damaging or overload working.
