6 Keys DC12-24V 3x4A Remote RGB Controller

Summarization:
RF controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing, stroboflash and other effects of change.

Technical Parameters:
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V, 18V, 24V <optional> (for orders specify voltage)
● Output: 3 channels
● Connectiing mode: common anode
● Transmission/Receiving frequency: 315 Mhz
● External dimension: L128 Χ W64 Χ H24 mm
● Packing size: L145 Χ W95 Χ H50mm
● Net weight: 185g
● Gross weight: 215g
● Static power consumption: <1 W
● Output current: <4 A (each channel)
● Output power: 5 V: <60W, 12V: <144W, 24V: <288W

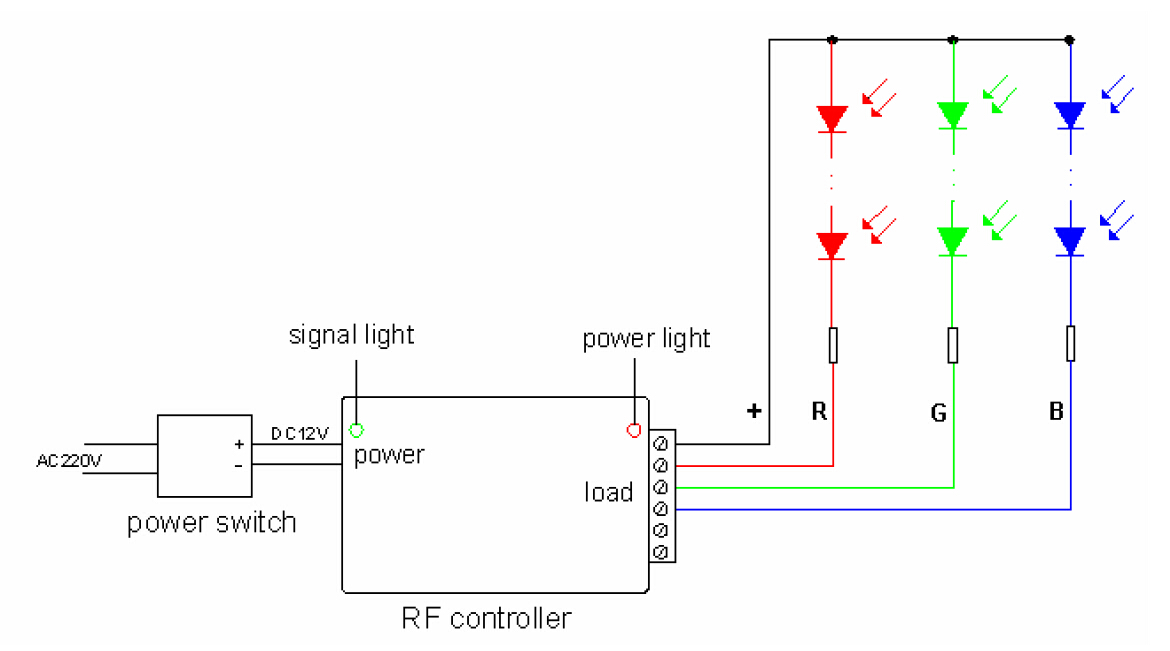

Direction for use:
