Black or White Color 3x4 A Touch Panel RGB Controller

Summarization

Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc.; Has the wiring convenient, use the advantages of simple; According to the actual needs of customers can realize jump to change, gradual change, flash lights change such as frequency effect.



Technical Parameters

● working temperature: -20-60 ℃

   ● supply voltage: DC12~24V

● output: 3 channels

● connection mode: common anode

● external dimension: L86 Χ W86 Χ H36 mm

● packing size: L140 Χ W50 Χ H60 mm

● net weight: 125g

● gross weight: 150g

● static power: <1W

● output current: <4A( each channel )

● output power: 12V<144W,24V<288W

Remarks:

1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.

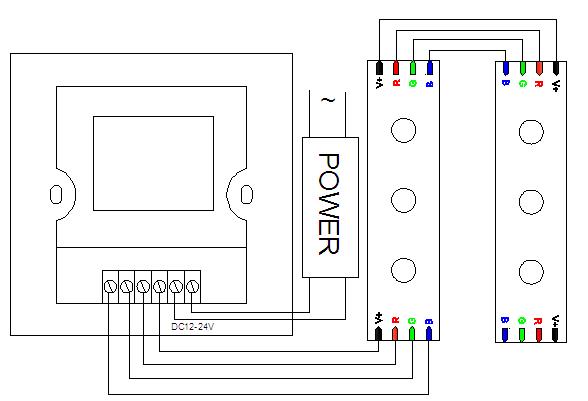

Typical Application
