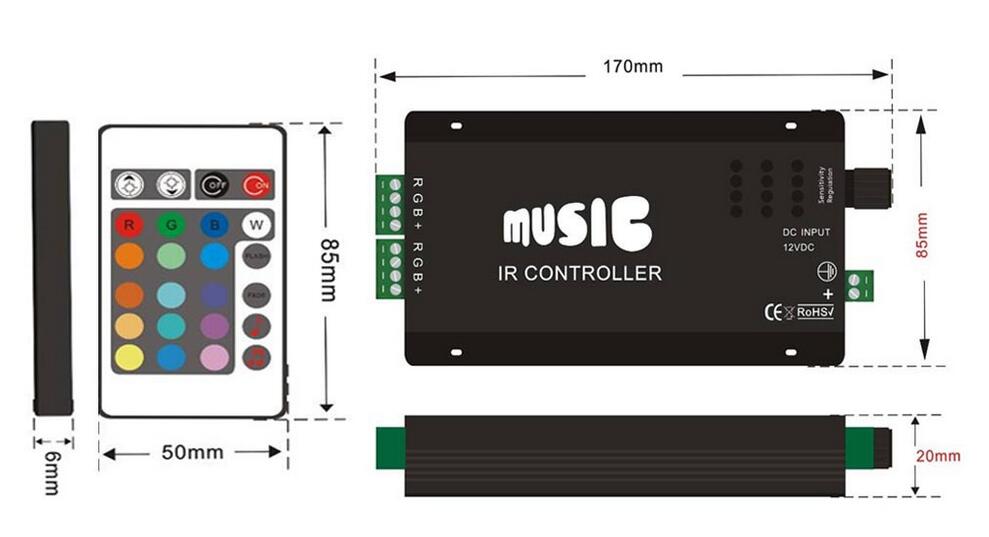

DC12-24V IR LED RGB Audio Music Controller LED Sound Sensitive Controller
2016/10/9 viewers
- BrandKL
- TypeKL-Music-24K
Introduction
DC12-24V IR LED RGB Audio Music Controller LED Sound Sensitive Controller
Specifications:
Supply Voltage:DC12V~24VOptional
Output:3 CMOS Open drain Output
Output current:4A/CH
Output power:12V:<144W, 24V:<288W
Operating Current: Max 18A.
Sound Control: >70dB
Output Power: 2 channels RGB up to 180W.
Common Anode
Remote Operating Voltage: Lithium Battery.
Operating Temp: -20℃~60℃
Feture :
- IR wireless Remote control. Effective control distance up to 15 meters.
- Sonic sensitivity, light flash controlling by music rhythm.
- Color, Brightness and controlling Mode adjustable,
- Input Polarity Protection and PWM(Pulse Width Modulation) Output Control Mode.
- CE, Rohs Compliance.
