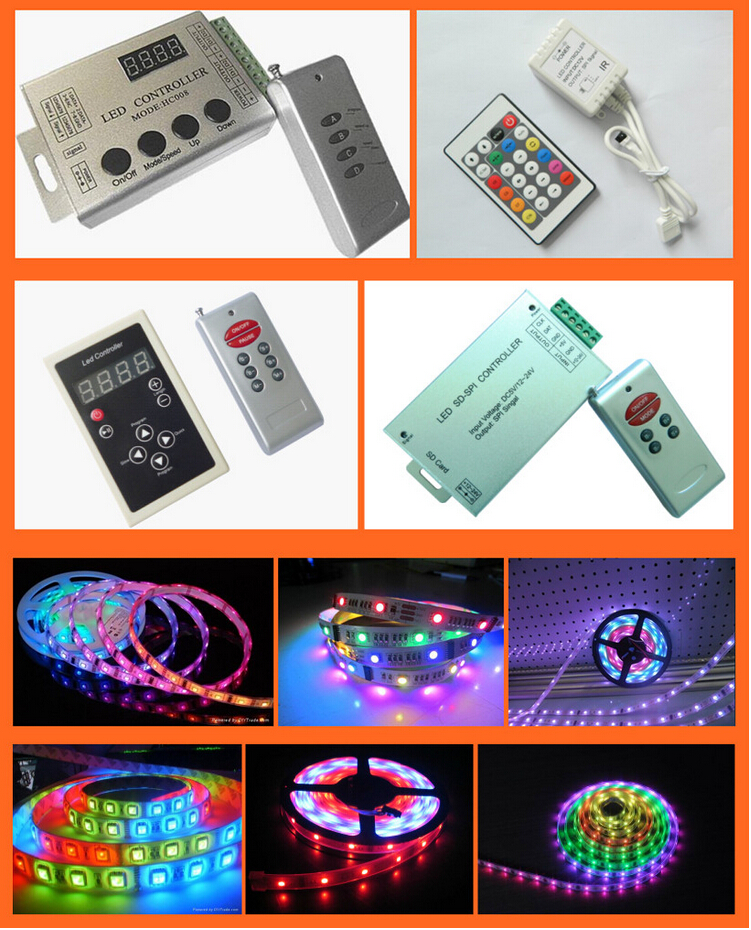

DC 12V 133 Change Magic Dream Color ICTM1803,TM1804,TM1809,UCS1903 Led Strip Controller With IR Remote Control

magic led strip controller, Item number: KL-MC-008
4output ports,
DC12V-24V,

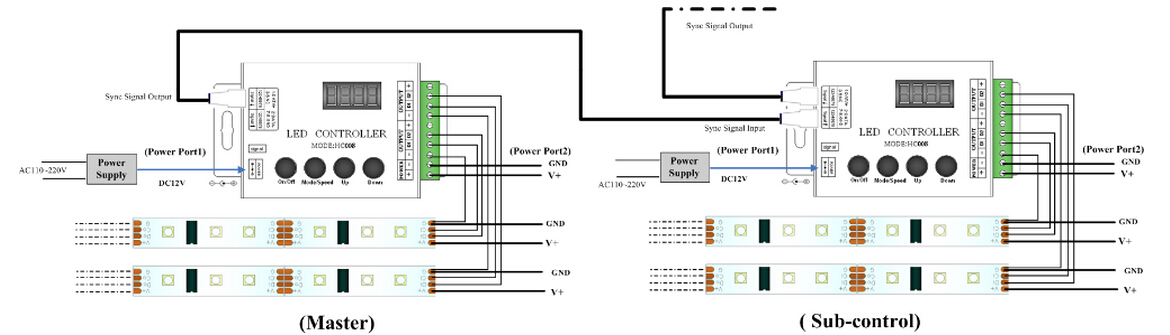

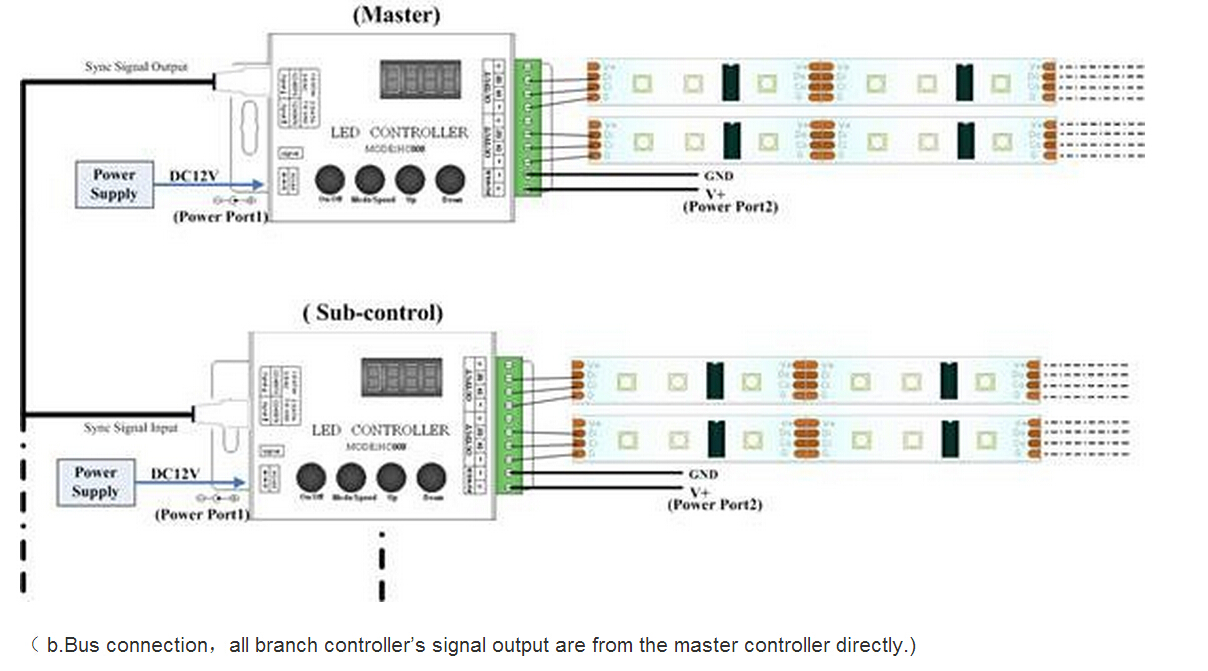

single or master-slaver connection,
With RF wireless panel.

Introduction:

Wireless Synchronous LED Controller (Item number: HC008) is suit for UCS1903, WS2811, TM1812, TM1804 etc) output applications, which drive LED directly. It is widely used in advertising, Club, stage sets, home decorations, etc. It has many advantages such as low price, easy connection and simple to use. It has a memory function. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. It can also be used as a synchronous controller. That is to say you can synchronously control number of decoders and LED lights. You don’t need to take much time to learn how to program effects because more than 100 program effects are pre-loaded.

The controller does not support SD card. It is composed by two parts: LED controller and RF remote panel.

Technical Parameters:

Working temperature	-25-60°C
Supply voltage	DC12V
Current	<60mA
External dimension	L137*W70*H25 mm
Packing size	L137*W80*H54mm
Net weight	180g
Gross weight	270g
Program Effects(pre-loaded)	133
Maximum control points	4outputs, each port can control 1,024pixel max, totally can control 4,096 pixels max.
Controlled IC Type	Such as theTM1803, TM1804, TM1809, UCS1903etc. (specify the required model on orders)
