DC5-24V 6A Mini 3 Keys RGB LED Controller with DC Plug

Summarization:

This controller adopts the advanced micro control unit. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers’ needs, it can realize gradual change, fade in dimming, jumping change, flicker, quick flash and other varieties of static color lighting effects. It is easy to take, simple to use, etc.

Technical parameters:

Working temperature: -20-60℃

Supply voltage: DC5-24V

Output: 3 channels

Connection mode: common anode

Controller dimension: L35.0* W15.0*H4.5mm

Packing size: L155.0 * W50.0*H13.5mm

Net weight: 11g

Gross weight: 15g

Static power: <0.5W

Output current: <2A (each channel)

Output power: 5V < 30W, 12V < 72W, 24V <144W

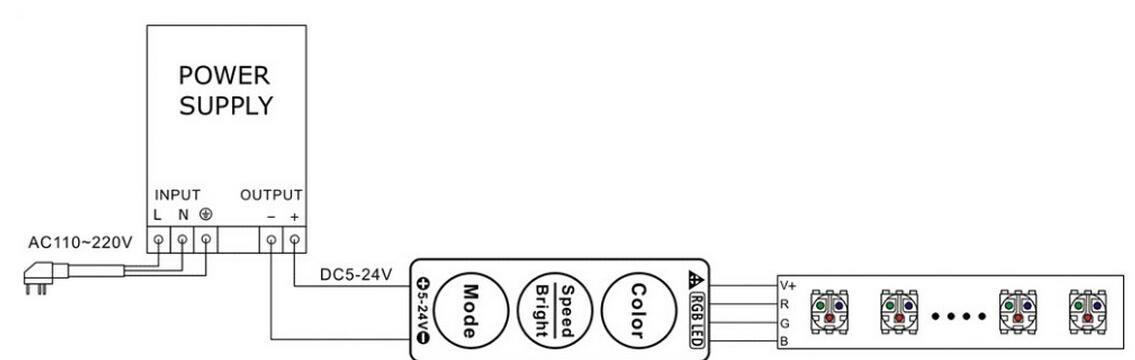

 Application:
