DC12-24V 8A Touch LED Strip Light Dimmer Controller For 3528 5050 Single Color Strip

*Summarization
Dimmer is a controller that it can adjust brightness infinitely,its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.

*Technical Parameters
● Working temperature: -20-60 ℃
● Supply voltage: DC12V
● Output: 1 channel
● External dimension: L90*W58*H51mm
● Packing size: L96 Χ W64 Χ H65 mm
● Net weight: 85 g
● Gross weight: 110 g
● Static power consumption: <1 W
● Output current: <8 A
● Power output: 96 W

* Direction for use

Adjust brightness steplessly:
1, When power on, it is at OFF status.
2, Short-time touching(<1s) can get ON/OFF function.
1), After power on, it will change between 100% ON and 100% OFF.
2), After long-time touching, it will change between OFF and current brightness.
3, Long-time touching(>1s), change brightness circularly：
1), If it is in OFF status, long-time touching will gradually change brightness circularly from minimum brightness
2）,If it is in ON status, long-time touching will gradually change brightness circularly from current brightness.
3), If you keep touching till 100% OFF or 100% ON. Current changing direction will change to opposite.
For example, if current status is increasing brightness, it will decrease brightness after it reach 100% ON. If current status is decreasing brightness, it will increase brightness after it reach 100% OFF.
4, If you release your finger during long-time touching, it will keep current brightness. When you restart , long-time touching, brightness changing direction will turn to opposite. In this way, you can modify brightness if
5, Memory
After short-touching, it will turn to last brightness.

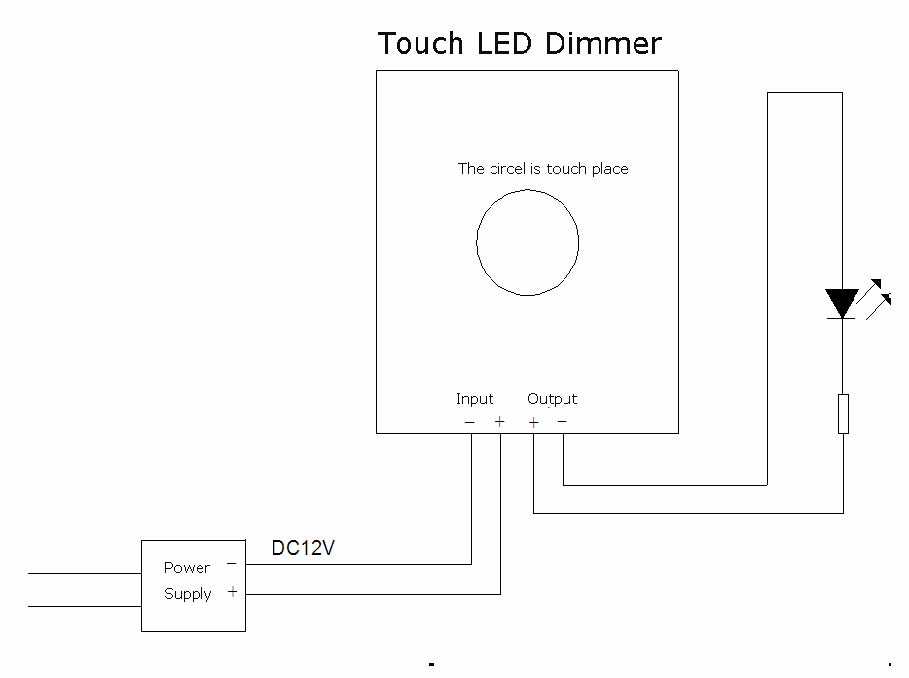

* Typical Applications
